ScienceofSpeed Link G4X ECU Kit (NO ECU INCLUDED) - S2000, 2006-09
$0.00
SKU
enpp-382X.01
Note: this kit does not include the Link FuryX ECU. Looking to purchase a kit with the ECU included? Click here.

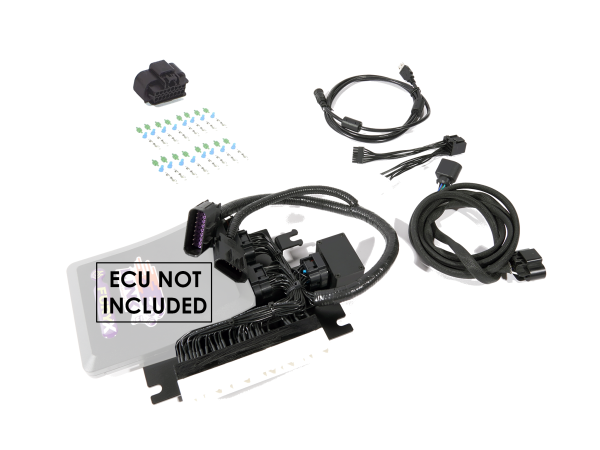

Includes
- Mounting bracket secures the ECU in the factory location.
- Plug-and-play wire harness mates to the factory wire harness.
- Accessory connector kit.
- Bussing module expands accessory power sources.
- Wideband sensor wire harness.
- USB programming cable.
Note: this kit does not include the Link FuryX ECU. Looking to purchase a kit with the ECU included? Click here.
Options
- version: four options are available that optionally support cruise control and traction control.
- Traction control: options that support traction control include a module that converts the factory wheel speed sensor into a signal the Link ECU can use. Compatible with factory traction control switch, status lamp, and traction loss lamp.
- Cruise control: options that support cruise control support the factory cruise main, set, resume switches. Cruise main LED is supported (indicating that cruise is ready to activate) however, the cruise active lamp is not currently supported. This option adds clutch & pedal position sensors. In addition to cruise control, it also supports optional 2-step and auto-blip functions.
- Traction & cruise control: includes an expansion module that allows all inputs and outputs required to support both functions to be supported by the ECU. Also supports fuel level for race dashes and an additional 0-5V input and additional temperature input for more advanced motorsports applications.
- wideband oxygen sensor: the ECU includes a built-in wideband (lambda) controller. In addition, the kit includes a plug-and-play wideband sensor wire harness. An LSU 4.9 wideband sensor is required. Choose this in the drop-down above.
- fuel pressure sensor: highly recommended. Closed-loop fuel calculations can be precisely calculated by the Link ECU with less reliance on wideband sensors with fuel pressure sensor input. Choose this in the drop-down above.
- factory dash translator module: an optional module translates the CAN output from the Link ECU into a signal that is compatible with the factory dash. This preserves the factory dash functions like the coolant gauge and check engine lamp. This module is not required if a race dash will be used.
