Titan 7 T-S5 Forged Wheels - NSX, 1991-05
$0.00
SKU
epp-2561-X

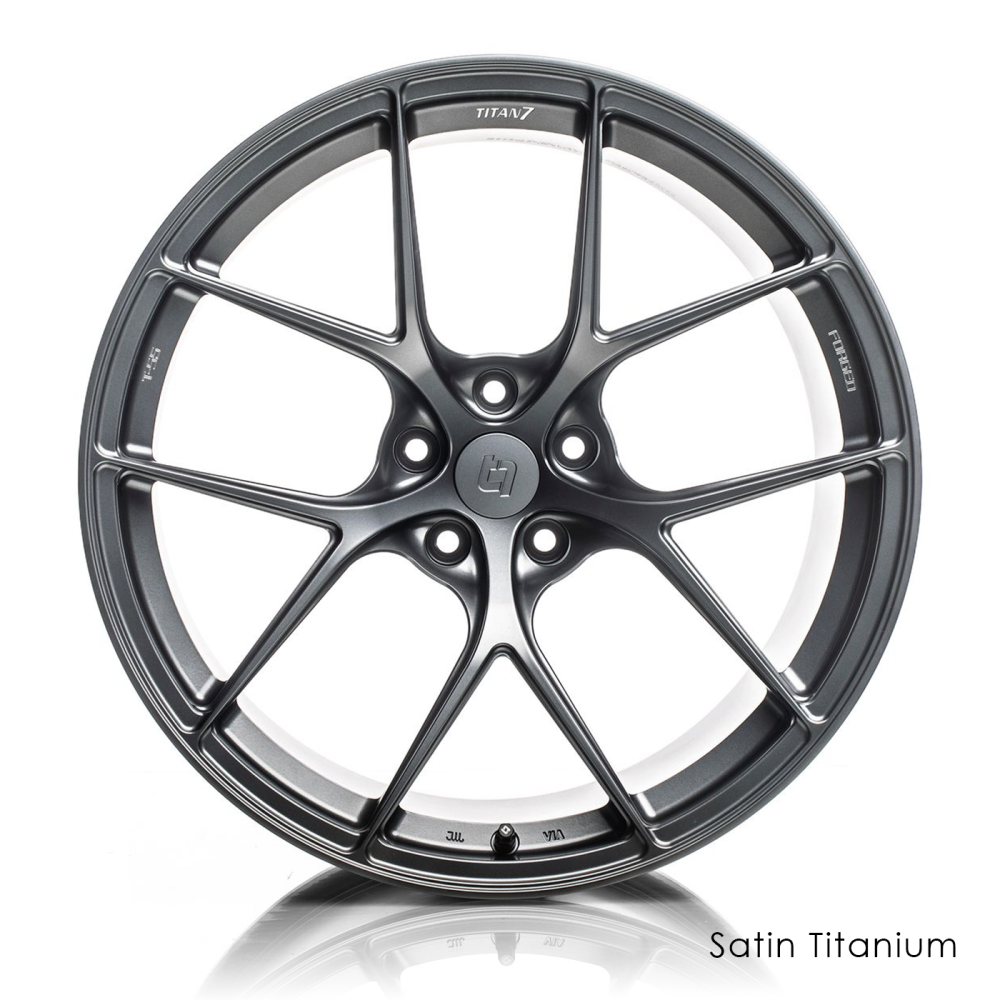

The T-S5 is a fully forged wheel designed completely with performance in mind.
Pressurized with 10,000 TONS of industry-leading pressure to give you a wheel that is incredibly strong while giving you all of the performance attributes you need in a track-focused wheel. Upon close inspection, you will notice strength adding ridges which have been strategically placed to give the wheel rigidity while keeping weight to a minimum. The split 5-spoke design was chosen for its motorsports heritage and track-worthy structure. Each wheel from Titan 7 features traction-improving bead seat knurling, beefed-up inner rim flange for durability and strength, and logo-machined accents. The T-S5 is designed for each application to clear all popular aftermarket big brake kits while achieving maximum concavity. All wheels are durability tested according to JWL standards to ensure safety while you perform. Authentic performance from Titan 7. Forged for All.
Wheel Specifications:
front: 17x8.0+37, rear: 18x10.0+40
Brake clearance:
Clears ScienceofSpeed Brembo Pista, Brembo GT, Brembo Indy, Stoptech.
Weight (approximate):
Front: 16.6 lbs, Rear: 19.6 lbs
Recommended tire sizes (street):
front: 215/40-17 & rear: 265/35-18 (click here for available options) or
Recommended tire sizes (track):
front: 235/40-17 & rear: 275/35-18 (click here for available options)
Note: these are intended for track use - front size is oversized and may result in rubbing on inner fender panels & fender liner. Some modification like flaring of the fender may be required.
Features
- Fully forged with industry-leading 10,000-ton press.
- Designed exclusively for the first generation NSX: NSX-specific sizing, offset, and bolt center.
- Everything from design, tooling, forging, machining, heat treatment, surface finishing, and testing is all done in house with no outsourcing.
- Properly designed offsets eliminate the "tucked" look of the factory wheels with the need for spacers.
- Tire traction improving knurled bead lock.
Includes
- Front & rear set of wheels.
- Set of 4 CNC-machined aluminum valve stems, black anodized.
- Hub-centric centering rings.
Options
 |
 |
 |
Available Finishes:
- Satin Titanium
- Satin Machine Black
- Satin Techna Bronze
Optional Center Caps:
CNC-machined aluminum center caps, color-matched to the wheel, are available as an optional upgrade.
Optional lug nuts:
These wheels require 60-degree seat lug nuts, typical for aftermarket wheels. Factory lug nuts are not compatible. Click here for recommended lug nuts.
